How To Install a TOUGH GUN ThruArm Robotic MIG Gun onto a Motoman Robot

Note: The following installation instructions are applicable to installing TOUGH GUN® TA3 robotic air-cooled MIG guns on Motoman® MA1440, MA2010 and MA3120 robots

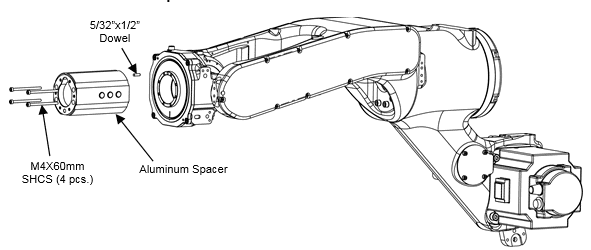

Step 1: Aluminum Spacer Installation

How To Install a TOUGH GUN™ ThruArm™ Robotic MIG Gun onto a Motoman® Robot, step 1

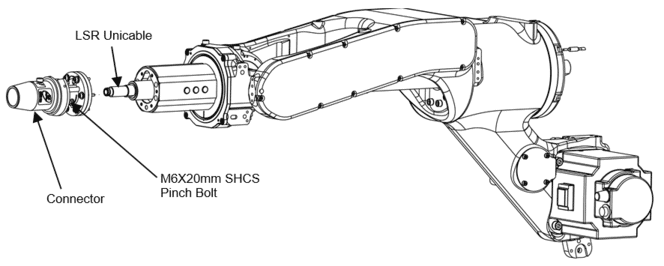

Step 2: LSR Unicable Installation into Connector

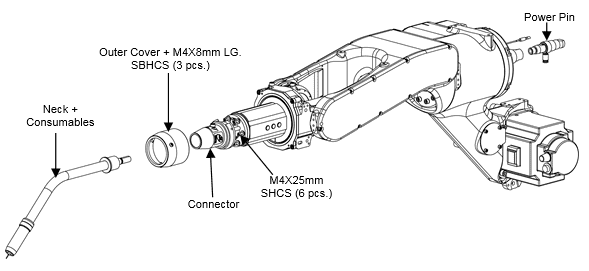

Step 3: Connector, Outer Cover, Power Pin, Neck and Consumable Installation

How To Install a TOUGH GUN™ ThruArm™ Robotic MIG Gun onto a Motoman® Robot, step 3

INS099  11/2016
